McCormick D-Max Tier 3A

115 - 125

McCormick D-Max Tier 3A




112, 120


Synchro Shuttle

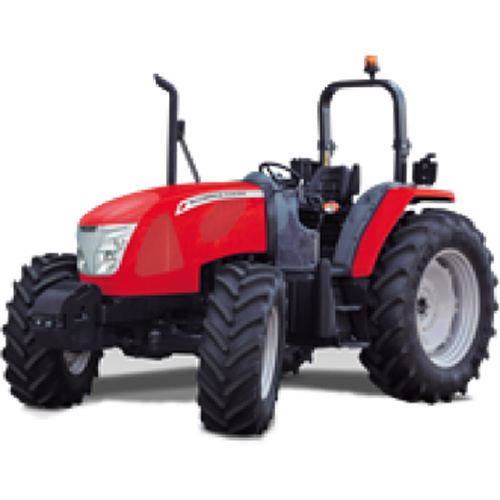

Specially developed for non-European markets, the new D-Max series is offered in cab and platform versions. Featuring a simple and rugged design, this tractor is extremely user-friendly and easy to service and can work many hours without stopping to refuel, making it ideal to tackle virtually any tasks in the field and around the farm. The D-Max 115 and 125 models are powered by FPT NEF4-2V 4.5-liter, 4-cylinder turbo engines that meet the Tier 3 emissions regulations and deliver 112 and 120 hp, respectively. Both models feature a Speed Four modular transmission with four synchronized gears in three ranges and a left hand steering-column power shuttle. Optionally, the tractor can be equipped with an electrohydraulic T-Tronic transmission that features a 3-speed powershift (H-M-L) and an electrohydraulic power shuttle. A creep speed transmission is available as an option for both versions. Offered as standard is a two-speed PTO with electrohydraulic control and multi-disc wet clutch. Both four-wheel drive and differential locks are engaged electrohydraulically, which makes driving the tractor with implements attached a lot easier. The hydraulic system features as standard a double pump that delivers 66 l/m and 29 l/min to the hitch and steering, respectively. A closed-centre system with a high-flow pump providing 110+38 l/min can be supplied as an option. The tractor comes standard with two remote valves to operate implement hydraulic functions. The rear hitch with 50mm twin assistor rams is mechanically controlled and ensures a lift capacity of 4500 kg. For more precise implement control, the version with closed-centre hydraulics can be equipped with an electronically controlled rear hitch with the same lifting capacity as the mechanical one. The Deluxe four-post cab offers total comfort for long hours of fatiguefree operation in the field. The version with iso-mounted platform is equally comfortable as the cab version. The folding ROPS can be optionally equipped with a sun canopy.
